razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence

Product Categories
Anping County Wanhai Metal Products trading Co.,Ltd.
Contact Now

razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence

  • 1
  • 2
  • 3

Brand Name : wanhai

Model Number : CBT-60,65,BTO18,BTO22,BTO-28,BTO-30

Certification : SGS D&B

Place of Origin : Chin

MOQ : 5000kgs

Price : USD750-USD850 PER TON

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 200 TONS PER WEEK

Delivery Time : 7-14DAYS

Packaging Details : Waterproof paper /weaving bag /carton /pallet

material : high tensile strength steel wire,common steel wire, stainless steel wire

razor wire core wire diameter : 2.5mm+/-0.03mm

zinc coating : hot dipped galvanized 60g/m2, heavily zinc coating 180g/m2

application : used in villatic wall, window,military affairs, prison, government, bank, and also in living wall, personal house

pvc coated : PVC coated or PE coating can be finished, green,white, gray available

advantage : high tensile, long use life,nice appearance

export proportion : 70% export

Contact Now

Razor barbed wire is a kind of modern security fencing materials fabricated with sharp steel blade and high-tensile wire

razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fencerazor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence

 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence

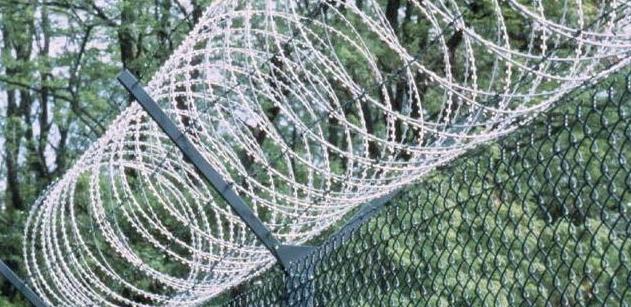

Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.high safe isolation razor wire barrier is used in the protection of Government agency, jail, sentry, frontier defense.economical,easy to execute.
razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence

Razor Blade Specification
Reference Number Blade Style Thickness Wire Dia Barb
Length		 Barb
Width		 Barb
spacing
BTO-10 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 28±1 15±1 34±1
BTO-30 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.5±0.05 2.5±0.1 30±1 18±1 34±1
CBT-60 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.6±0.05 2.5±0.1 60±2 32±1 96±2
CBT-65 razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) .
Standard materials are either hot dipped galvanized or stainless steel.
Standard blade styles are shown in the tables above, special specifications are available on reques.

Barbed Tape Wire Specification.
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type

Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years,concertina wire coil barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence


Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years,concertina wire coil barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
razor barbed wire protect barrier sentry frontier defense mesh fence high safe isolation military razor wire mesh fence
